Products > Gimbal Motors >> 68mm Gimbal Motor

Large image

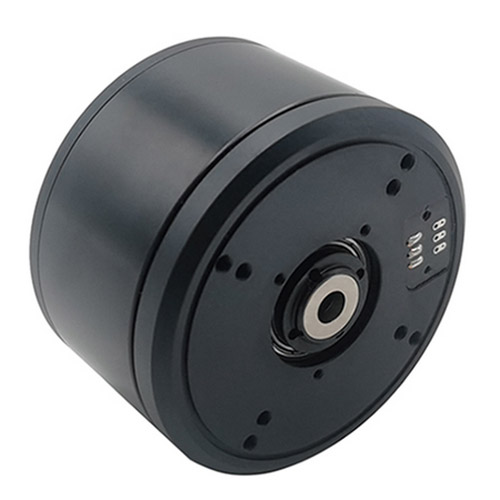

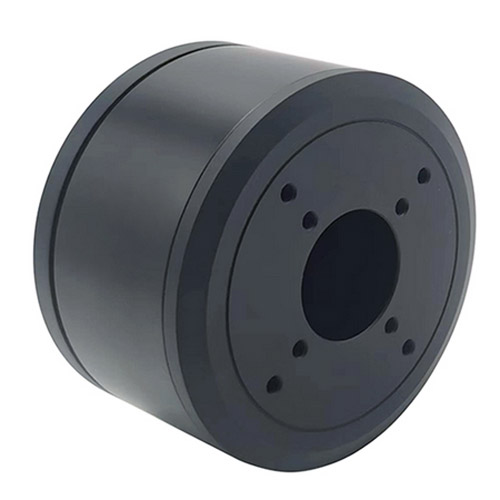

68mm Gimbal Motor

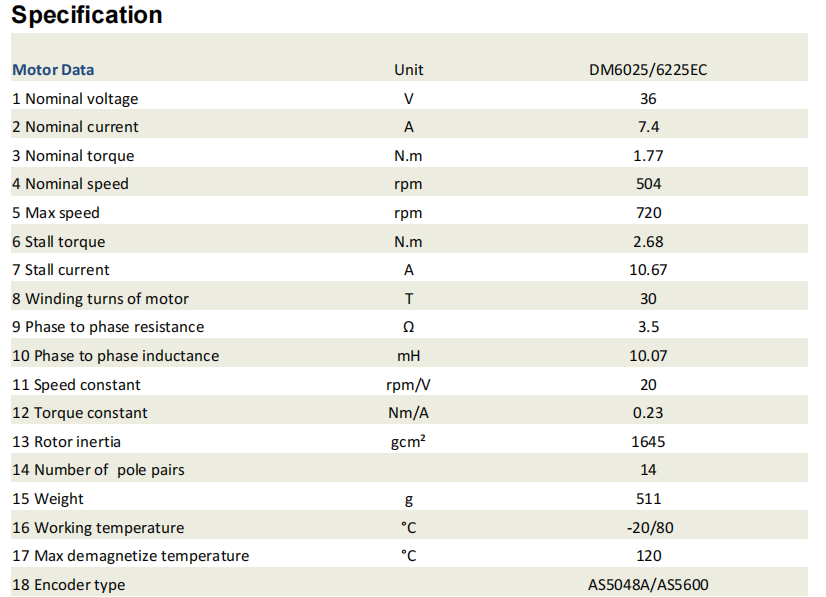

Model:DM6025EC

Unit:50

36V 504rpm

Rated 1.77N.m 7.4A

Stall torque 2.68N.m

Stall current 10.67A

Max speed 720rpm

3 Phase Brushless

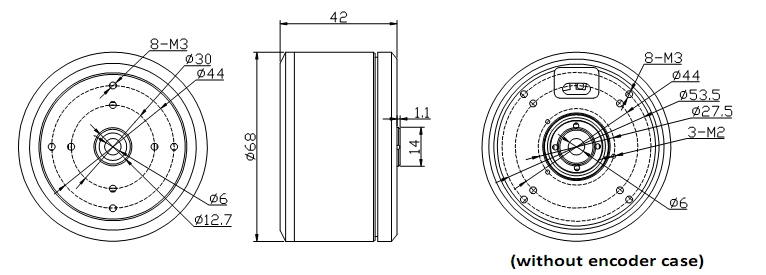

Size 68*42mm

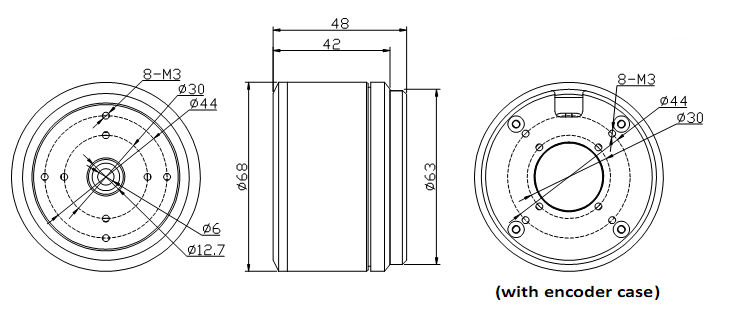

Size 68*48mm (with encoder and case)

House case size 63*6mm

Feature

68mm Gimbal Motor, are widely used on Humanoid Robots, Quadrupedal Robots, 360-degree cameras, LiDARs, Gimbal cameras.

Dimension
