Model:MPG32

Unit:100

Steel Gears and House

Efficiency 93%~75%

Ball Bearing

Rated torque 23.4KG.cm @4.4:1~8.3:1

Rated torque 31KG.cm @15.1:1~68.7:1

Rated torque 38.8KG.cm @77.1:1~368.2:1

Rated torque 46.5KG.cm @335.9:1~4713:1

Backlash ≤2°

Customized shaft and mounting size

Feature

Steel Planetary Gearhed

(for motor, DC motor, coreless motor, gear motor, planetary gear motor)

This is full steel gearhead, we can do customize the mounting face.

The first grade rated torque is 23.4Kgf.cm, and 93% efficiency.

1.Appearance size

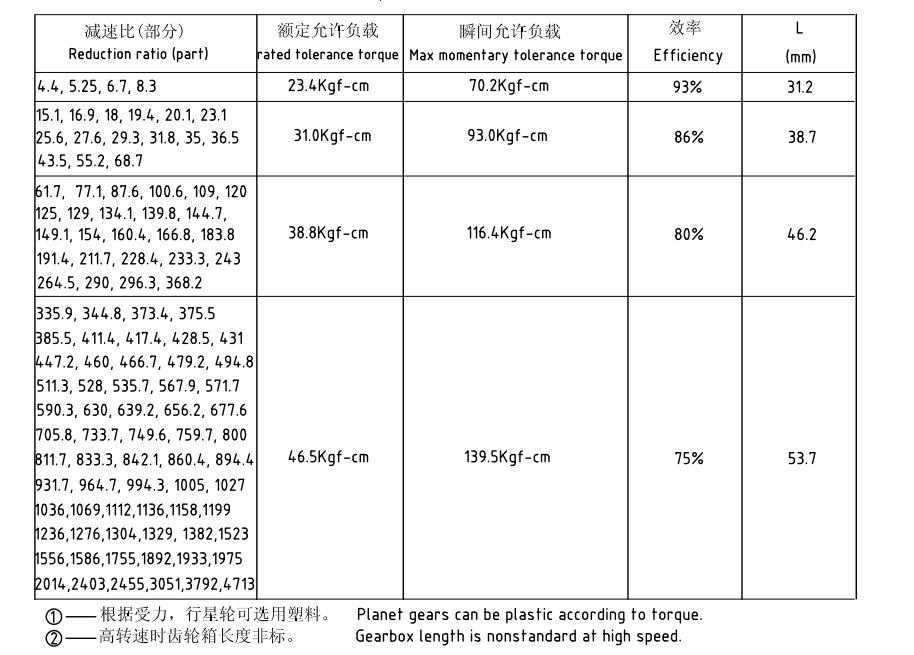

2.Gearboxes Specification
