 Products >  Precision Coreless Motors >>  Coreless Brushless Motors >> 22mm 10W Coreless Brushless Motor,Coreless Motor, Servo Motor, BLDC



Large image

22mm 10W Coreless Brushless Motor,Coreless Motor, Servo Motor, BLDC
Model:EC2232
Unit:100
  • 6-24V
  • 10W
  • 22mm*32mm
  • 7-8 mN.m rated torque
  • 33-36 mN.m stall torque
  • Max speed 30000rpm
  • 1 pair pole
  • 3 phase
  • Customized data
    		•




    Feature

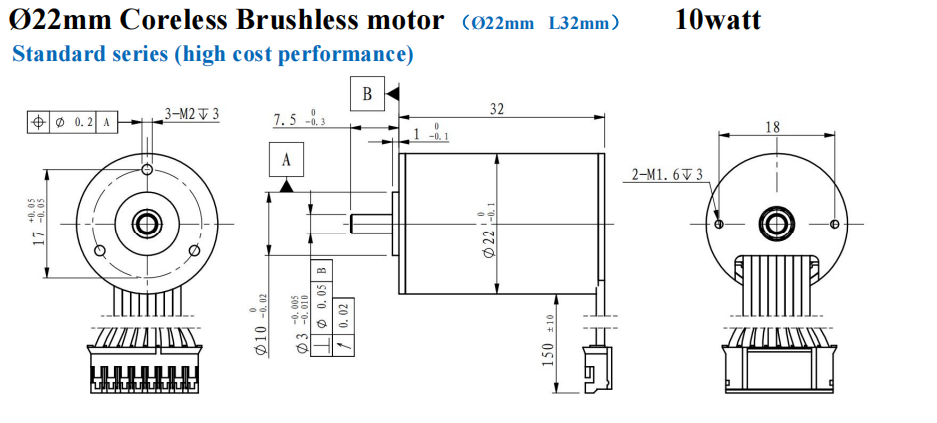

    22mm Coreless Brushless Motor
    (motor, DC motor, brushless motor, gear motor, planetary gear motor)

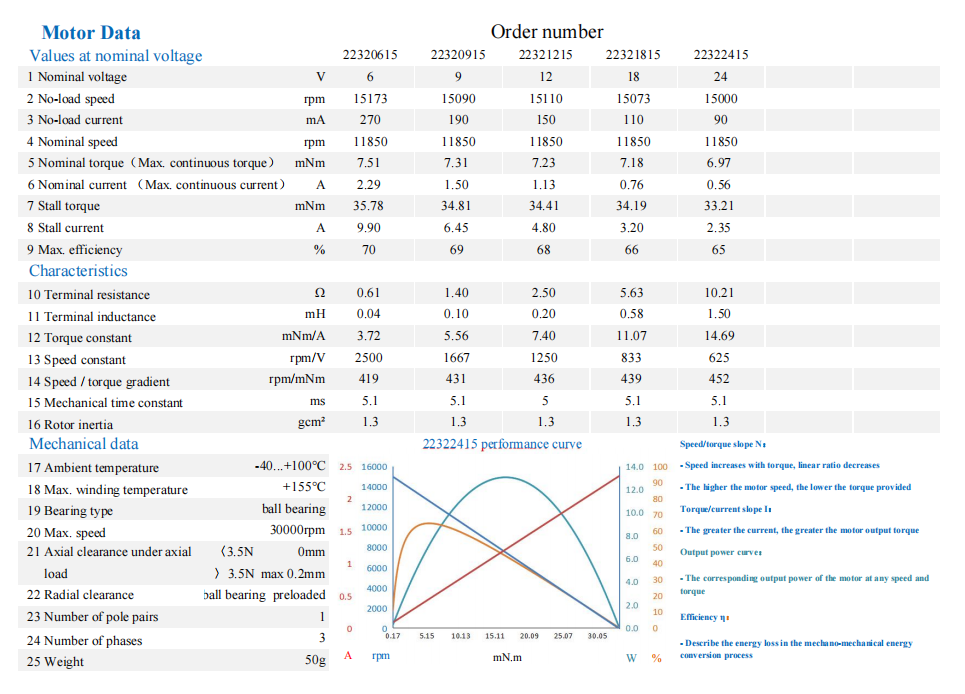

    EC2232 D.png
