Products > Precision Motors >> High Precision Gearheads >> 16mm Precision Planetary Gearhead

Large image

16mm Precision Planetary Gearhead

Model:MHG16

Unit:50

Steel Gear House

Steel Gears

Ball Bearing

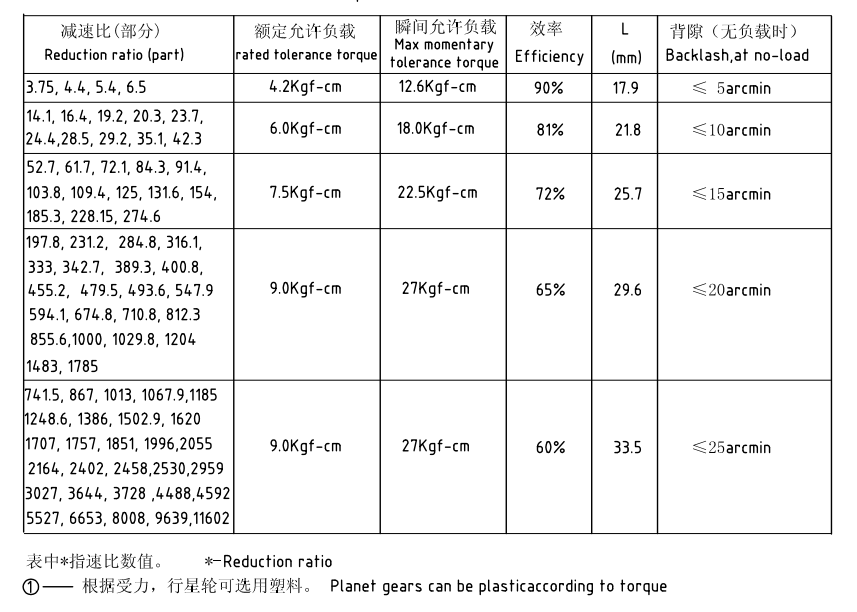

Rated torque 4.2KG 3.75:1~6.5:1

Rated torque 6KG 14.1:1~42.3:1

Rated torque 7.5KG 52.7:1~274.6:1

Rated torque 9KG 197.8:1~1785:1~11602:1

Efficiency 90%~60%

Backlash 5~25arcmin @ no load

Feature

High Precision Planetary Gearhed

This is full steel gearhead, we can do customize the mounting face.

The first grade rated torque is 4.2Kgf.cm, and 90% efficiency, backlash 5arcmin.

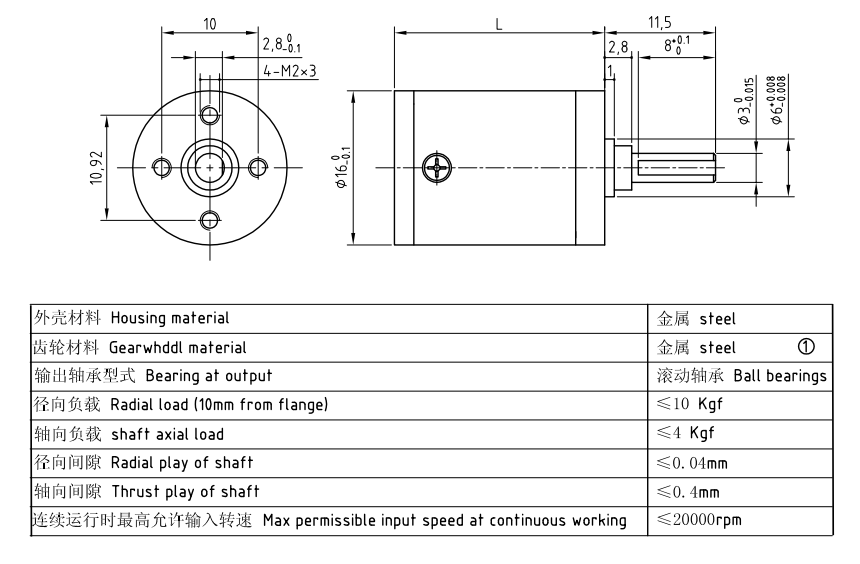

2. Gearboxes Specifications
